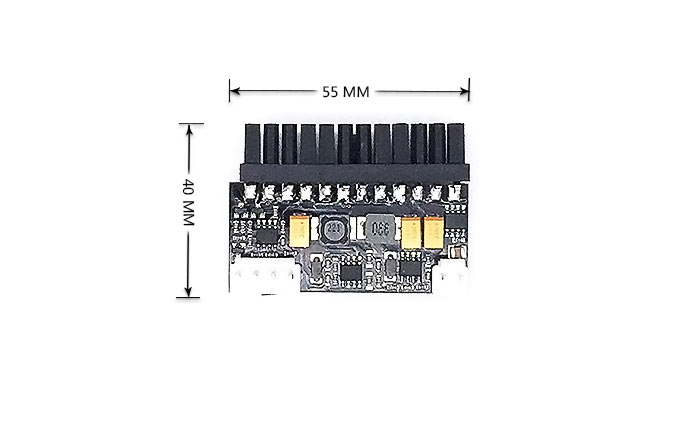

Model：LD150WL
Rated power：150W
Input voltage range：12V DC (11.2VDC—14.8VDC)
Input surging current：12.0Vmax@12VDC
Work efficiency：≥90%
Working temperature/humidity：5℃ to 50℃ /45%-75%℃
Storage temperature/humidity：-40℃ to +70℃/10%-90%
Fanless DC-DC solution for 100% mute operating.
Compact design, special for mini-itx and 1U case.

Strictly design and manufacture according to MINI-ITX power supply design specification.
Double sided PCB and SMT process are adopted.
High efficiency, small volume, good heat dissipation.
Multiple protection: over current, over voltage, short circuit multiple protection function.

Protection
（for+3.3V，+12V,+5.00V&+5.00VSB power output）
OCP：output shut down when output current reaches the peak point.
Short-circuit protection：output shut down when short-circuit.

MINI computer,one computer,POS machine,digital set top box,ITX case,network server,advertisement machine,bank terminal.etc.
